Objem reaktorov 10 lit., max. tlak do 350 bar, max. teplota do 500°C

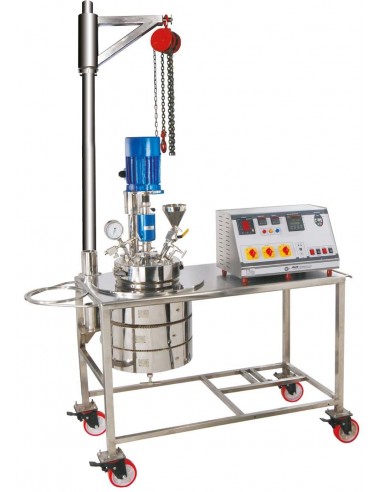

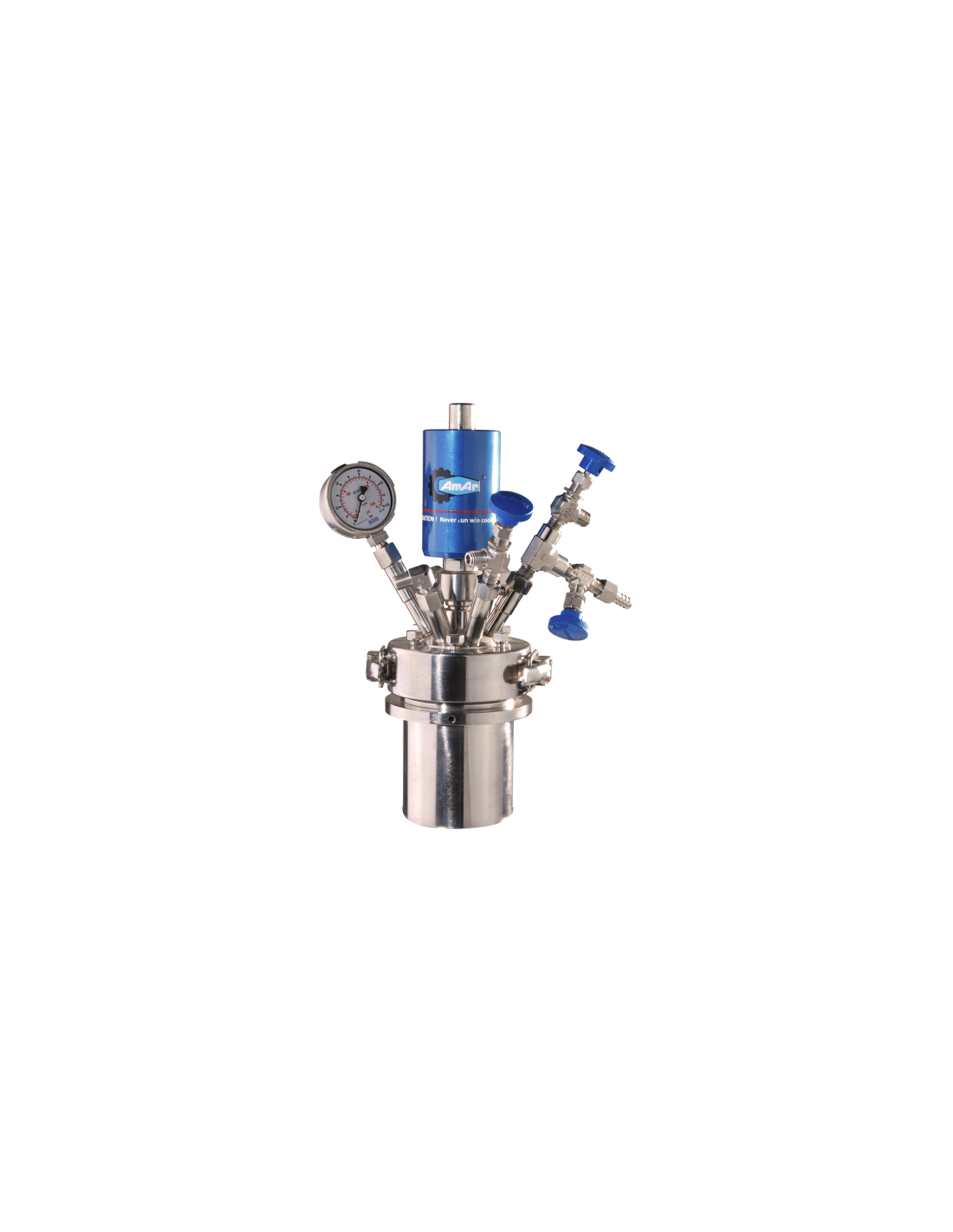

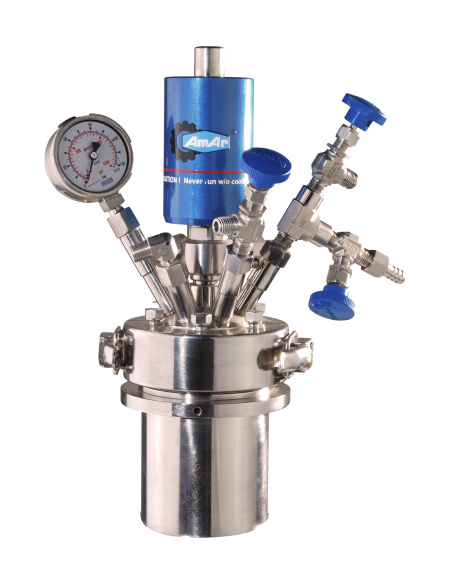

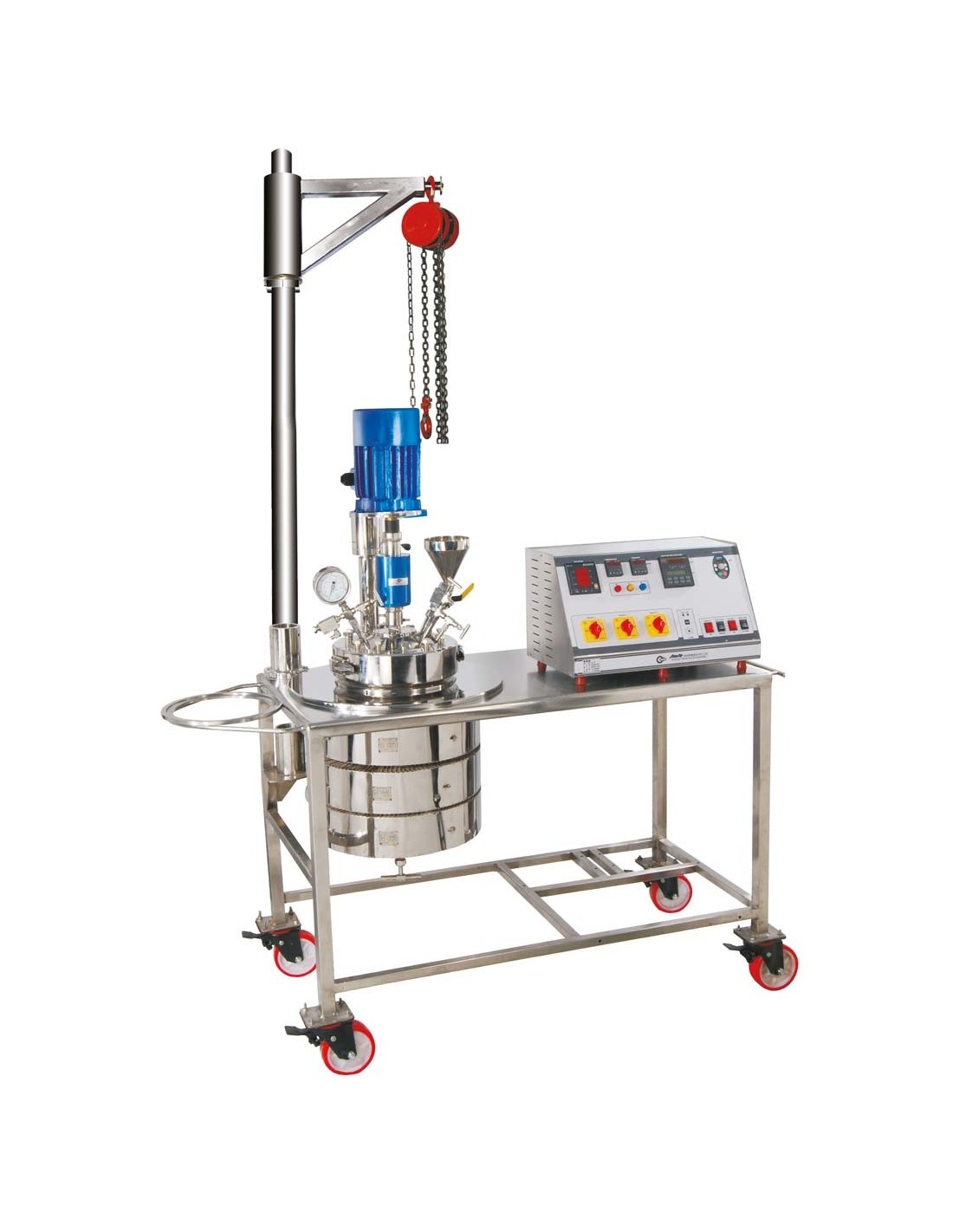

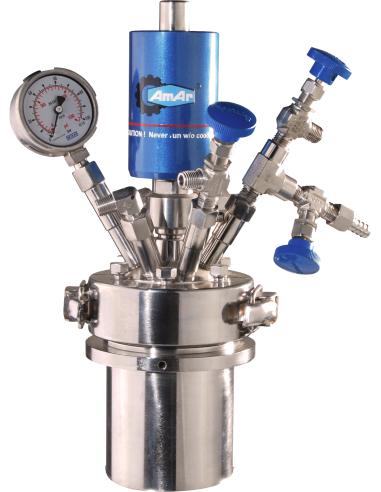

A 3000 seria 10 litrových vysokotlakových reaktorov
Štandardné modely s objemom 10 litrov
| Model no. | A 3113 | A 3115 | A 3123 | A 3125 | A 3133 | A 3135 |
|---|---|---|---|---|---|---|
| Design Pressure | 100 bar | 200 bar | 350 bar | |||
| Design Temperature | 300°C | 500°C | 300°C | 500°C | 300°C | 500°C |
| Vessel I/D (mm) | 185 | |||||
| Vessel Internal Height (mm) | 420 | |||||
| Min. Stirrable Volume (lit) | 1 | |||||
Technická špecifikácia pre štandardné modely vysokotlakých reaktorov série A3000
| Sr. | Description | Standard | Optional | |||
|---|---|---|---|---|---|---|
| A | Material of Construction | SS 316 wetted parts | SS 316L, Hastelloy C 276, Hastelloy C 22, Hastelloy B, Monel 400, Inconel 600, Inconel 625, Nickel 200, Titanium Gr. 2, Zirconium 702, Tantalum lined | |||
| B | Head Mounting Style | Removable head and vessel design | Fixed head with pneumatic vessel raising lowering (10ltr to 25ltr) Fixed head with hydraulic vessel raising lowering (50ltr & 100ltr) Fixed head with pneumatic vessel raising lowering & tilting (10ltr to 25ltr) Fixed head with hydraulic vessel raising lowering & tilting (50ltr & 100ltr) |
|||
| C | Heating Type | Electrical ceramic band heater with cladding & insulation & heater temperature control for 500°C | Electrical cast ex-proof, IIB + H2 certified Welded SS 304 jacket with insulation Welded SS 304 jacket with electrical ceramic heater Limpet coil SS 304 with insulation (20ltr to 100ltr) | |||
| D | Motor | ½ hp AC motor for 10 ltr, 20 ltr & 25 ltr locked to 750 rpm 1 hp AC motor for 50 ltr & 100 ltr locked to 500 rpm |
1 hp / 2hp / 3hp Ex-proof gas group IIB (Zone 1) XB 1 hp / 2hp / 3hp Ex-proof gas group IIC (Zone 1) XC 1 hp / 2hp / 3hp Ex-proof CE ATEX certified II 2G Ex de IIC T4 AZ 1 hp / 2hp / 3hp Ex-proof CSA certified Class 1 Div 2 ¼ hp compact in-line brushless DC motor Gearbox upto 440 rpm | |||
| E | Shaft Sealing | Zero leakage magnetic drive coupling M80 with 8 Nm torque for 10 ltr to 25 ltr & M120 with 12 Nm torque for 50 ltr & 100 ltr reactor | Zero leakage magnetic drive coupling: M120 with 12 Nm torque (for 10 to 25 ltr) M200 with 20 Nm torque (upto 750 rpm, for 10 to 25 ltr) M400 with 40 Nm torque (upto 750 rpm) | |||
| F | Stirrer | 2 stage 6 bladed turbine stirrer | Hollow shaft with gas induction Impeller Anchor (Serpentine cooling coil, max 100 rpm) Spiral (No cooling coil, max 100 rpm) Ruston turbine Paddle Propeller | |||
| G | Standard Nozzles, Valves & Fittings | External Valves & Fittings: Pressure gauge, safety rupture disc, gas inlet and liquid sampling needle valve with common dip tube, vent needle valve, ball valve for powder/ liquid inlet with funnel, flush bottom valve Internal Fittings: Helical cooling coil, dip tube, thermowell with RTD PT100 temperature sensor, baffles |
Serpentine cooling coil | |||
| H | Gasket | PTFE up to 300°C and metallic grafoil gasket up to 500°C | Metallic grafoil gasket up to 500°C | |||
| I | Closure Type | Split clamp with clamp bolts | ||||
| J | Control Panel | SS control panel with programmable PID temperature controller with high temperature alarm and variable frequency drive for motor speed control | Ex-proof gas group IIA/IIB zone 1 certified Ex-proof gas group IIC zone 1 certified Touch screen | |||
| K | Power Supply | 1Ø, 220 V AC, 50 / 60 Hz | Different power supply options may be possible on request | |||
| L | Mounting | SS Trolley | Floor Stand | |||
| M | Certifications | By Amar | Design approval as per ASME code by notified body CE-PED 2014/68/EU ASME U stamp coded ATEX certified reactor 2014/34/EU CE marked panel & electrical parts UL/CSA marked panel & electrical parts | |||
Material of Construction (MOC) - Voliteľné
| SS 316L | 316L |
| Hastelloy C 276 | HC6 |
| Hastelloy C 22 | HC2 |
| Hastelloy B | HB |
| Monel 400M | N4 |
| Inconel 600 | IN6 |
| Inconel 625 | IN5 |
| Nickel 200 | NK2 |
| Zirconium 702 | ZR7 |
| Titanium Gr. 2 | TI2 |
| Tantalum | TAN |
| Tantalum lined | TNL |
Poznámky k tabuľke:
- Vyššie uvedené špecifikácie sú pre maximálny pracovný tlak 100 bar (Kg/cm²) a 350°C teplotu. Pri vyššom tlaku alebo teplote autokláv sa údaje môžu zmeniť.
- Celkové rozmery sa môžu zmeniť v závislosti na voliteľnom príslušenstve alebo špecificky navrhnutých modifikáciach.
- Maximálne reakčný objem bude 75% objemu čistej kapacity (t.j. kapacity autoklávu).
- Celkové elektrické zaťaženie prístroja = Motor kW + Ohrev kW + Auto chladiaca pumpa (0.37kW) (ak bola zvolená)+(hociktoré zvolené príslušenstvo).
- Veľkosť panela je 300 x 300 x 300mm (pre štandardne 1 fázu s teplotou, otáčkami za minútu a kontrolkami tlaku) a 535 x 400 x 355 mm (šírka x hĺbka x výška) (pre štandardne 3 fázy s teplotou, otáčkami za minútu a kontrolkami tlaku), pre iné príslušenstvo sa to môže zmeniť.
- Objem
- 10 litrov
- Teplota
- 300 / 500 °C
- Maximálny tlak
- 100/200/350 bar
- Min. objem miesania
- 1 000 ml
- Ohrev
- elektrický alebo obvodovým plášťom
- Rychlost miesania
- nastaviteľná do 750 rpm
- Napájanie
- 230V/50Hz
