Interface 1010E
:
992-129
na objednávku do 30 dní
Cena s DPH
10 194,00 €
Cena bez DPH
8 495,00 €
Interface 1010E je aktualizovaná verzia mimoriadne populárneho potenciostatu Interface 1000E.

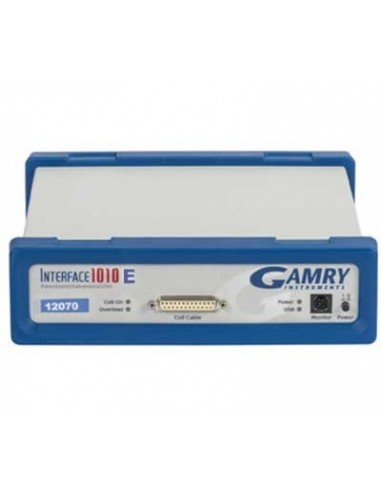

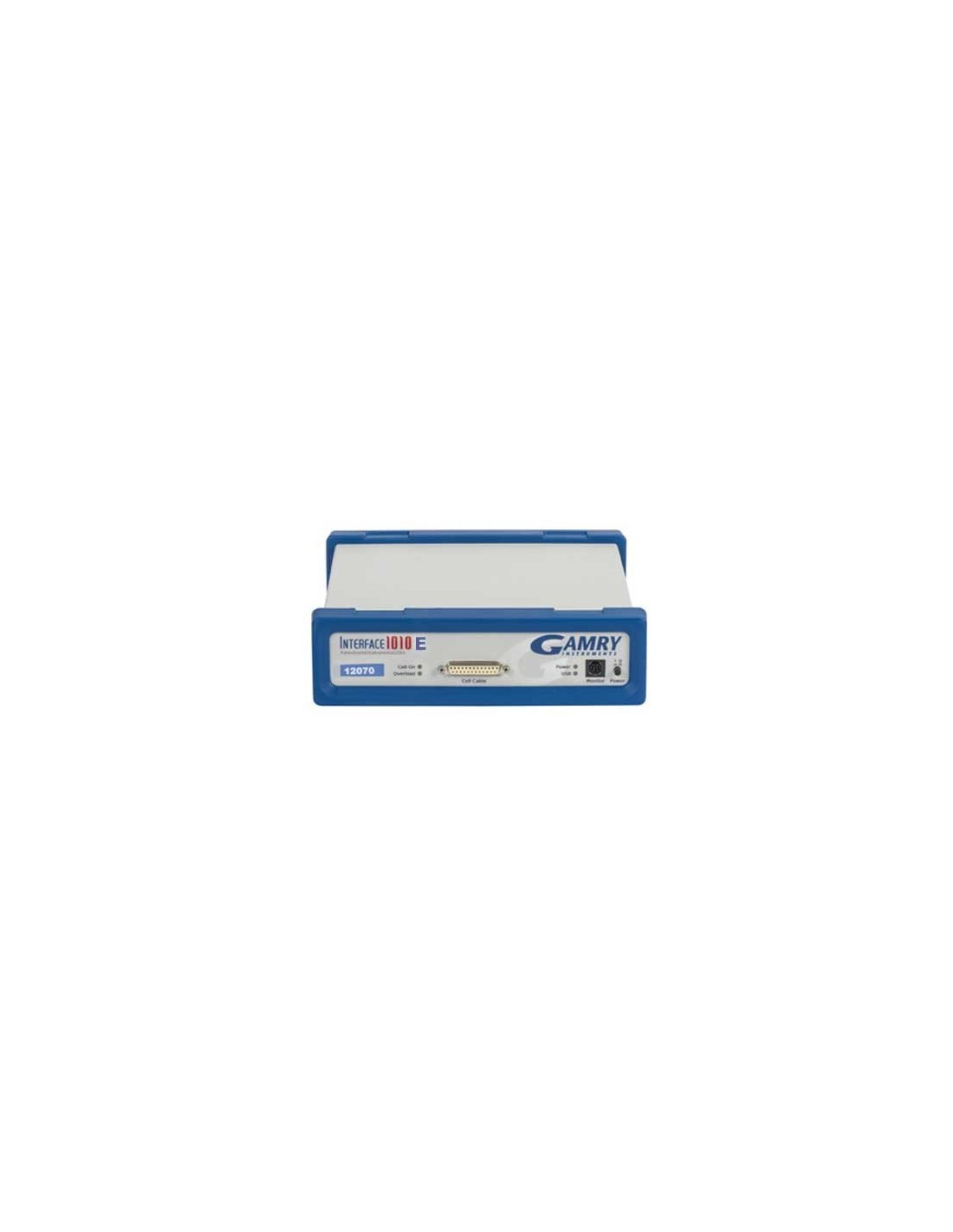

Interface 1010E
Potenciostat Interface 1010ETM je plnohodnotný potenciostat schopný vykonávať všetky techniky vrátane elektrochemickej impedančnej spektroskopie - EIS. Elektrochemická impedančná spektroskopia je rozšírená na 2 MHz a pridané je monitorovanie teploty.
Key features include:
- Max Applied Current - ±1 A
- Maximum Applied Potential - ±12 V
- EIS 10 μHz - 2 MHz
For applications including:
SYSTEM |
|
| Potentiostat | Yes |
| Galvanostat | Yes |
| Zero Resistance Ammeter | Yes |
| Floating (Isolated from Earth Ground) | Yes |
| Cell Connections | 2, 3, or 4 |
| Maximum Current | ±1 A |
| Current Ranges | 9 (10 nA - 1 A) |
| Current Ranges (including internal gain) |
11 |
| Minimum Current Resolution | 3.3 fA |
| Maximum Applied Potential | ±12 V |
| Rise Time | <1 μs |
| Minimum Time Base | 10 μs |
| Noise and Ripple | <20 μV rms |
| Weight | 2.4 kg |
| Dimensions | 24 (W) x 6 (H) x 27 (D) |
CONTROL AMPLIFIER |
|
| Compliance Voltage | ±20 V (@ 1A) |
| Output Current | >±1 A |
| Speed Settings | 5 |
| Unity Gain Bandwidth | 980, 260, 40, 4, 0.4 kHz |
EIS MEASUREMENT |
|
| EIS | 10 μHz - 2 MHz |
| EIS Accuracy | See Accuracy Contour Plot |
| AC Amplitude | 2.33 V maximum 17.8 μV minimum |
ELECTROMETER |
|
| Input Impedance | >1012 Ω |
| Input Current (typical) | <20 pA |
| Bandwidth | >10 MHz |
| CMRR | >80 dB (10 kHz) >60 dB (1 MHz) |
POTENTIAL |
|
| Applied Accuracy | ±1 mV ±0.2% of setting |
| Applied Resolution | 200 μV, 50 μV, 12.5 μV/bit |
| Measured Accuracy | ±1 mV ±0.3% of reading |
| Measured Resolution | 1 μV, 10 μV, 100 μV, 400 μV/bit |
CURRENT |
|
| Applied Accuracy | ±5 pA ±0.3% of range |
| Applied Resolution | 0.0033% full-scale/bit |
MEASURED CURRENT |
|
| Measured Accuracy | ±5 pA ±0.3% of range |
| Measured Resolution | 0.0033% full-scale/bit |
| Bandwidth | >10 MHz (1A - 100 μA) >1.5 MHz (10 μA) >0.15 MHz (1 μA) |
- Frekvenčný rozsah EIS
- 10 μHz - 2 MHz
- Hluk a šum
- 80 dB
- Napätie zosilovaca
- ± 20 V (at 1A)
- Vstupný prud elektromera
- 20 pA
- Šírka
- 24 cm
- Dlzka
- 27 cm
- Výška
- 6 cm
- Hmotnosť
- 2.4 kg
